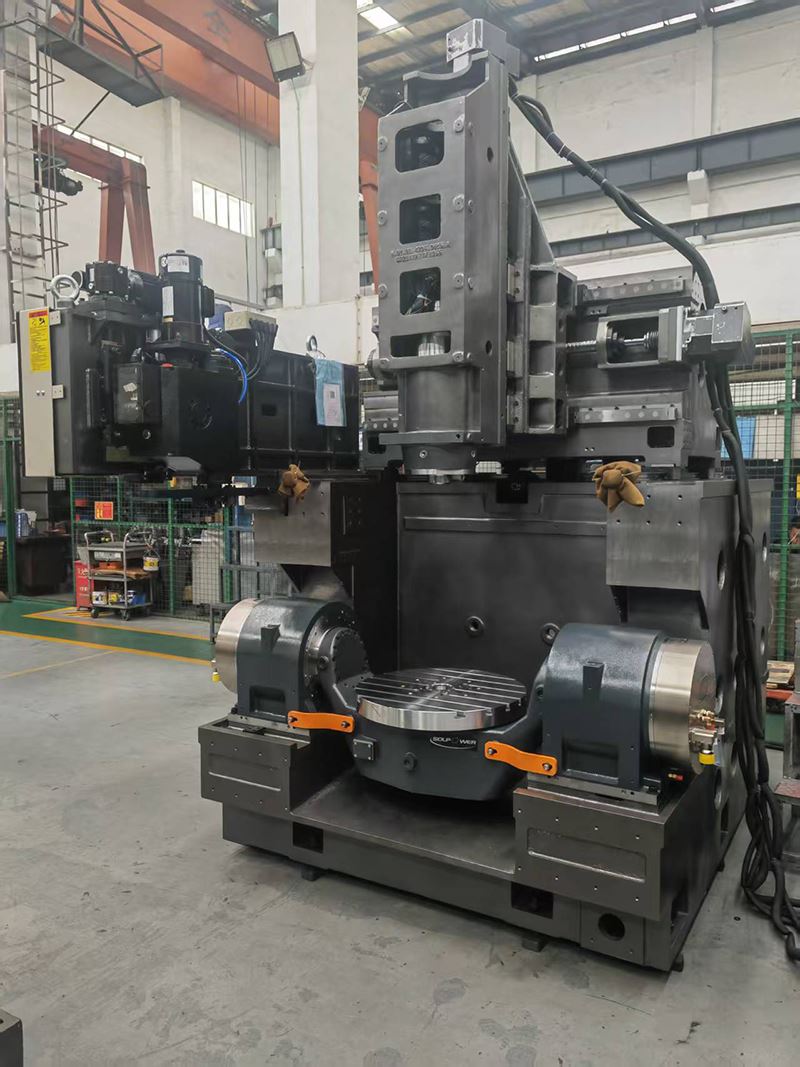

Siab -Rigidity Cast Iron Frame
Cov qauv tseem ceeb yog tsim los ntawm siab - zoo GG30 cam khwb cia hlau, tsim los ntawm resin xuab zeb molding thiab cov txheej txheem ntoo. Qhov no ua kom lub thav duab muaj kev co zoo heev damping, cov qauv rigidity, thiab ntev - lub sij hawm geometric stability, nteg lub hauv paus ruaj khov, siab - precision machining.
Sab saum toj imported Core Components
Cov khoom siv tseem ceeb, suav nrog txoj hauv kev qhia tawm, pob screws, spindle units, yog los ntawm cov npe nrov thoob ntiaj teb. Qhov no guarantees lub tshuab muaj kev ntseeg siab, precision tuav, thiab ncua kev pab cuam lub neej.
High Rigidity thiab ceev Machining Performance
X / Y linear axes yog tag nrho sib cais los ntawm cov axis teb. Qhov kev teeb tsa no ua rau siab - nrawm nrawm nrawm thaum tswj kev ruaj ntseg siab, txhawb nqa kev ua haujlwm zoo heev.
Ib -Lub Sijhawm Clamping rau Ntau- Txheej Txheem Machining
Lub 5-axis configuration enables ua tiav multi-sided thiab complex-profile machining nyob rau hauv ib tug clamping teeb. Qhov no ua rau txo qis lub sijhawm clamping, txo qis qhov kev ua haujlwm tsis raug, txhim kho kev tsim khoom, thiab ua kom zoo ib yam.
Customizable Configuration Options
Cov neeg siv khoom tuaj yeem xaiv qhov sib txawv tshwj xeeb rau cov spindle, cov ntawv xov xwm, thiab cov lus teb kom haum rau lawv cov kev xav tau tshwj xeeb.
Lwm Cov Kev Pabcuam thiab ib qho kev daws teeb meem
Peb muab cov kev pabcuam nres ib leeg los txhawb koj daim ntawv thov kev xav tau, xws li kev tiv thaiv, nti conveyors, twj tso kua mis, cua txias, spindle roj chillers, thiab lwm yam.
| Specifications | Chav tsev | TWS 400 | TWS 500 | TWS 650 | TWS 800A | MW 210 A | MW 210B | MW 550A |
| Muaj peev xwm | ||||||||
| Table Size | mm | Ø400 | Ø500 | Ø630 | Ø800 | Ø200 | Ø200 | Ø550 |
| X taug kev | mm | 500 | 550 | 700 | 850 | 620 | 600 | 900 |
| Y taug kev | mm | 650 | 800 | 900 | 1000 | 400 | 400 | 600 |
| Z taug kev | mm | 450 | 550 | 500 | 600 | 300 | 300 | 450 |
| Spindle | ||||||||
| Spindle Taper / Dia. | BT40/Φ150 | BT40/Φ150 | BT40/Φ150 | BT40/Φ150 | BT30/Φ100 | BT40/Φ120 | BT40/Φ150 | |
| Max. Ceev | rpm ua | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 | 12000 |
| Pub | ||||||||
| X qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Ball linear phau ntawv qhia | Ball linear phau ntawv qhia | Roller linear phau ntawv qhia | |
| Y qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Ball linear phau ntawv qhia | Ball linear phau ntawv qhia | Roller linear phau ntawv qhia | |
| Z qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | |
| X tsav | ncaj qha | ncaj qha | ncaj qha | ncaj qha | ncaj qha | ncaj qha | ncaj qha | |
| Y tsav | ncaj qha | ncaj qha | ncaj qha | ob direct | ncaj qha | ncaj qha | ncaj qha | |
| Z tsav | ncaj qha | ncaj qha | ncaj qha | ncaj qha | ncaj qha | ncaj qha | ncaj qha | |
