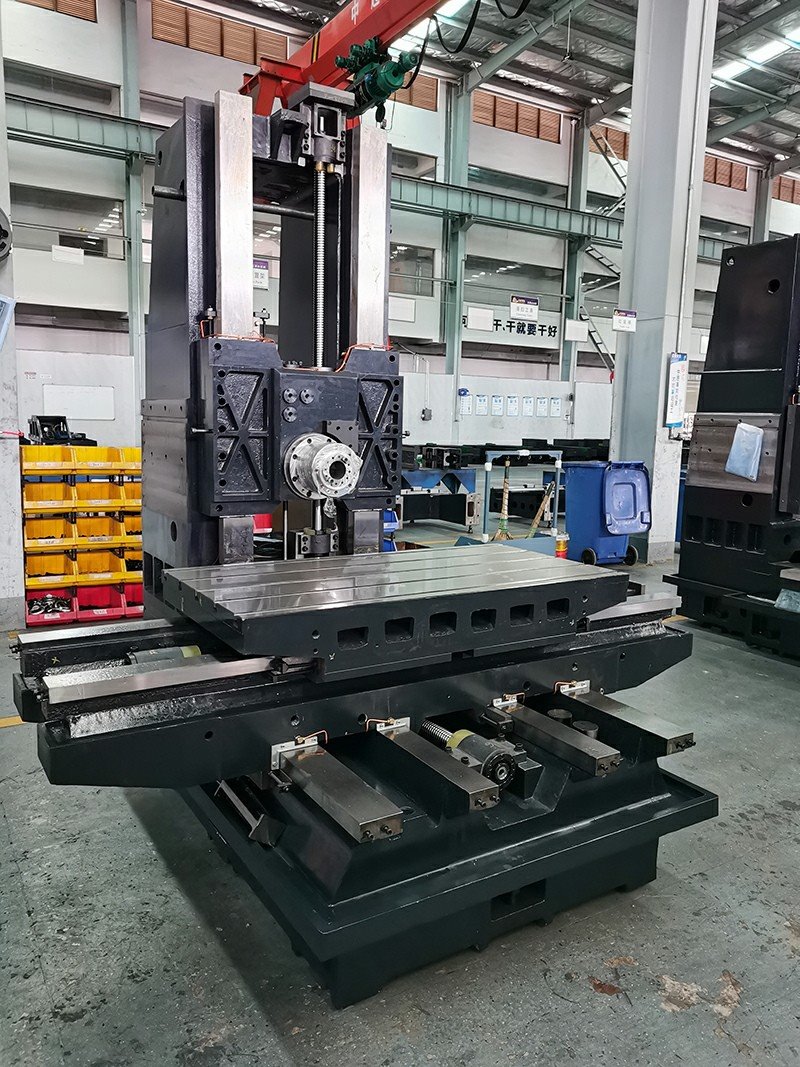

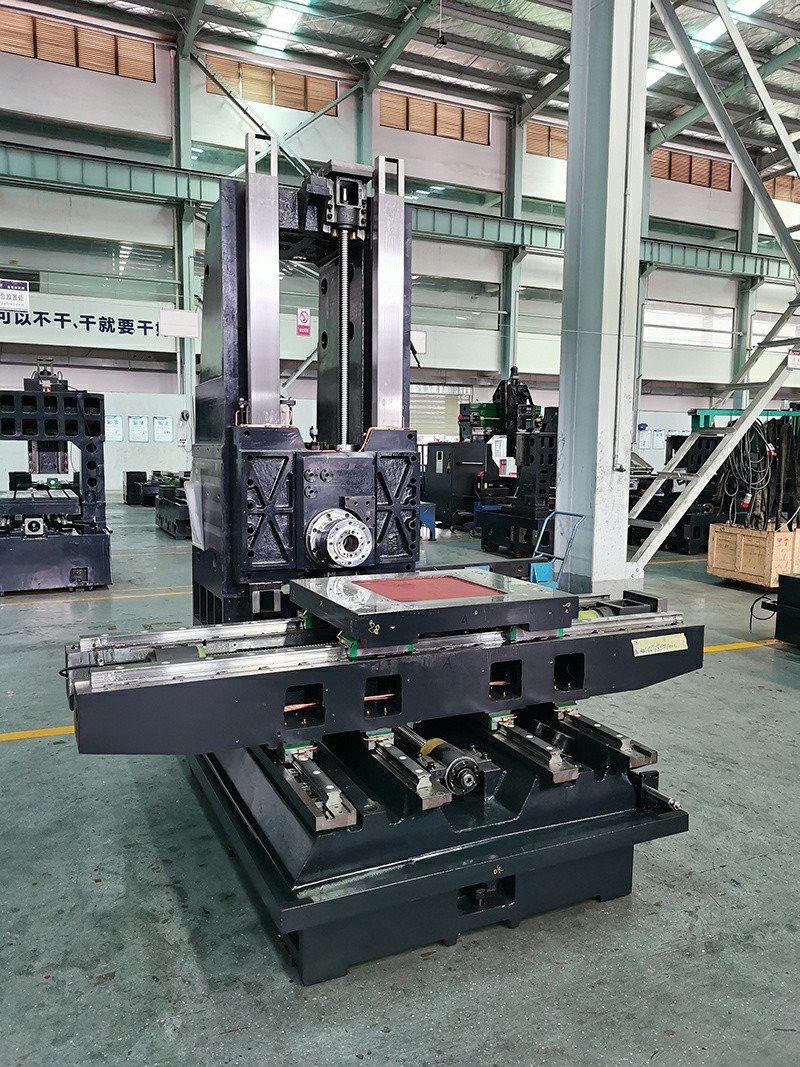

Economical kab rov tav milling thav duab yog qhov nkag -Level Kab rov tav Machining Center
Nws muab cov tub ntxhais kab rov tav machining peev xwm ntawm ib feem ntawm tus nqi ntawm HMC tag nrho, ua rau tus nqi - muaj txiaj ntsig zoo rau kev cob qhia nrhiav kom nthuav dav lawv cov peev txheej ua haujlwm kab rov tav.
Spindle & Motion Architecture
Kab rov tav Spindle Orientation: Zoo li ib txwm HMC, cov ntxaiv yog mounted kab rov tav, sib npaug rau lub rooj ua haujlwm, ua kom muaj txiaj ntsig kab rov tav milling, tho txawv, thiab ntau - sab machining.
Simplified Motion System
Tsis zoo li HMCs, Economical kab rov tav milling thav duab txais ib qho ruaj khov -kem, txav - rooj, khaws cov kab X / Y / Z axis txav ntawm VMC thaum sib koom ua ke kab rov tav spindle.
High rigidity casting
Lub tshuab lub cev yog tsim los ntawm qib siab - qib cam khwb cia hlau (HT300) nrog FEM- optimized ribbing, kom ntseeg tau siab zoo li qub thiab dynamic rigidity rau hnyav - lub luag hauj lwm txiav, zoo ib yam li HMCs, tab sis tsis muaj cov complex enclosed qauv ntawm hwm qauv.
Optional Rotary Table rau 4-Sided Machining
Los ntawm kev sib koom ua ke 4th-axis teb lub rooj ntawm lub rooj ua haujlwm, lub tshuab tuaj yeem ua tiav tag nrho 4-sab machining ntawm workpieces hauv ib qho kev teeb tsa, tshem tawm qhov xav tau ntawm phau ntawv rov kho dua thiab txhim kho kev ua haujlwm zoo.
Lubrication
Central automatic lubrication system: Lub tshuab yog nruab nrog lub hauv nruab nrab tsis siv neeg lubrication system.
Space Efficiency
Muab piv rau HMCs loj, nyob hauv ib puag ncig, cov txaj no - hom kab rov tav mills muaj cov hneev taw me me, ua rau lawv tsim nyog rau kev cob qhia uas tsis muaj chaw hauv pem teb.
Tus neeg teb xov tooj -Kev Tsim Kho Zoo
Khaws cov kev ua haujlwm zoo ntawm VMCs, nrog rau cov khoom siv tau yooj yim thiab pom kev, txo lub sijhawm kev cob qhia rau cov neeg ua haujlwm paub txog cov tshuab ntsug.
| Qauv | lwv 855 | LWB 970-II | LW970A-II | LWB 970-P | LW970A -P | lwv 13 | LWB 13 | lwv 15 | LWB 15 | lwv 1075 | lwv 1290 | lwv 1814 |
| Lub rooj loj (mm) | 550×1000 | 650×1200 | 650×1200 | 700×1300 | 700×1300 | 810×1500 | 810×1500 | 810×1700 | 810×1700 | 600×1300 | 700×1360 | 900×1260 |
| Lub rooj sab laug / sab xis X (mm) | 800 | 1100 | 1100 | 1200 | 1200 | 1300 | 1300 | 1500 | 1500 | 1000 | 1200 | 1800 |
| Spindle nce / down Y (mm) | 600 | 750 | 750 | 750 | 750 | 800 | 800 | 800 | 800 | 750 | 900 | 1400 |
| Lub rooj rov qab / tawm Z (mm) | 550 | 650 | 650 | 700 | 700 | 1000 | 1000 | 1000 | 1000 | 600 | 700 | 900 |
| X qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Ball linear phau ntawv qhia | Ball linear phau ntawv qhia | Ball linear phau ntawv qhia |
| Y qhia | Roller linear phau ntawv qhia | Box txoj kev | Roller linear phau ntawv qhia | Box txoj kev | Roller linear phau ntawv qhia | Box txoj kev | Roller linear phau ntawv qhia | Box txoj kev | Roller linear phau ntawv qhia | Box txoj kev | Box txoj kev | Box txoj kev |
| Z qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Roller linear phau ntawv qhia | Ball linear phau ntawv qhia | Ball linear phau ntawv qhia | Ball linear phau ntawv qhia |
| Siv Spindle | BT40-150-8000 | BT40-150-8000 | BT40-150-8000 | BT40-150-8000 | BT40-150-8000 | BT50-155-8000 | BT50-155-8000 | BT50-155-8000 | BT50-155-8000 | BT50-190-6000 | BT50-190-6000 | BT50-190-6000 |
| Lus ceeb toom | Tsis muaj Y counter balance | Tsis muaj Y counter balance | Tsis muaj Y counter balance | Tsis muaj Y counter balance | Tsis muaj Y counter balance | Tsis muaj Y counter balance | Tsis muaj Y counter balance | Tsis muaj Y counter balance | Tsis muaj Y counter balance | Y counter balance | Y counter balance | Y counter balance |
